EFR 80W CO2 Laser Tube for Laser Engraver Cutting Machine

Precision Engraving:

• Our CO2 Laser Tubes produce stable laser beams to make precise marks on a wide variety of materials.

Power:

• Rated Power: 80W
• Peak Power: 95W
• Beam Diameter: 5 mm
• Operating Voltage: 19 KV
• Wavelength: 10,640 nm
• Cut up to 1" thick plywood and acrylic/plexiglass

Lifetime:

• 80W Borosilicate Glass CO2 Laser Tube with an estimated lifetime of up to 8,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 7,000–8,000 Hours
• Moderate Power 40–70% = 5,000–6,500 Hours
• High Power 70–100% = 3,000–4,000 Hours

Easy to Install:

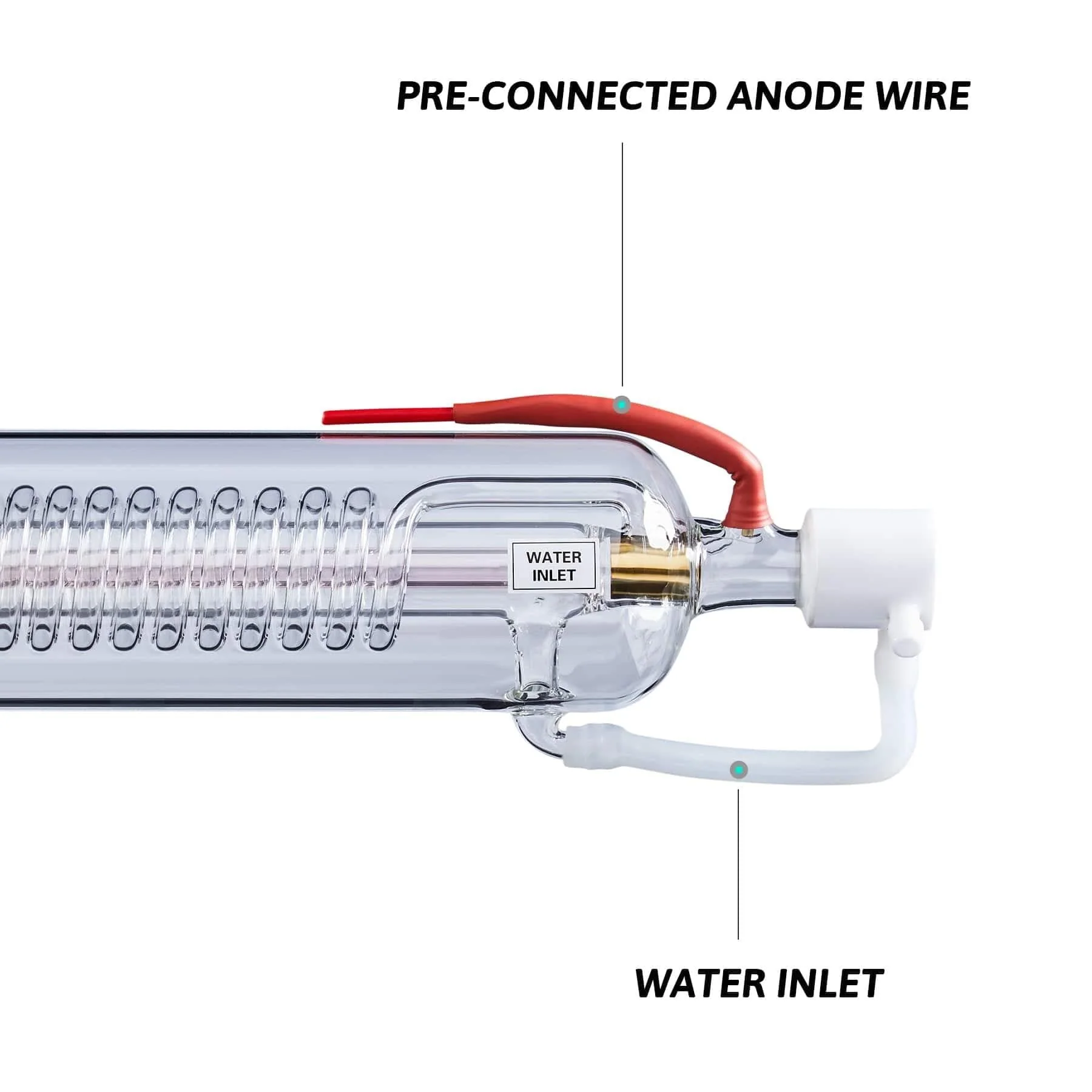

• The preinstalled Cathode and Anode Wires allow quick and effortless setup.

Additional Features:

• Product Length: 4’ 1” (1250 mm)
• Product Diameter: 80mm
• Net Weight: 6.61 lb
• Allowable Humidity: <85%

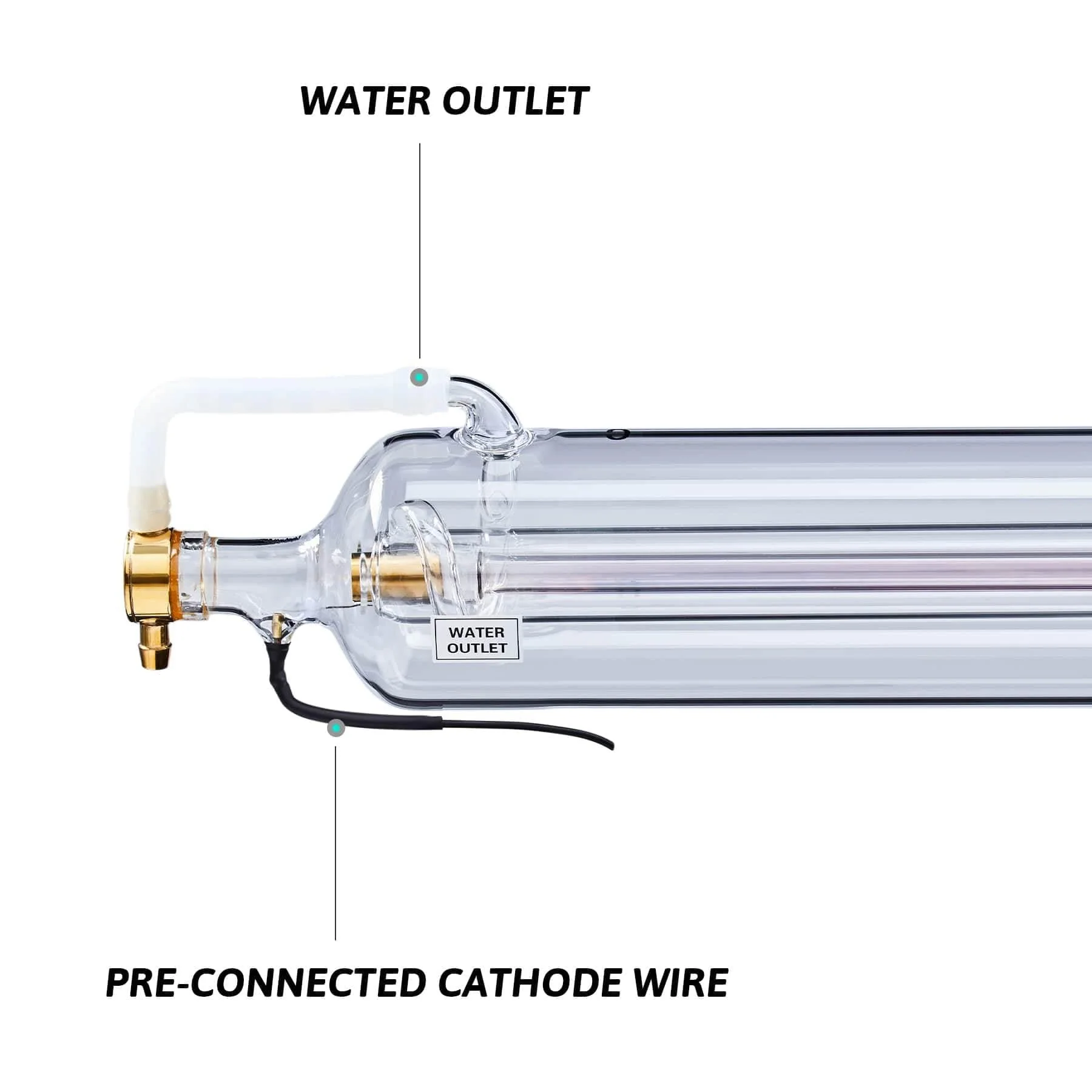

• The water outlet and inlet allow efficient flow of cooling water.
• Made out of borosilicate glass, copper, and plastic
• Optimum cooling water temperature between 60-70°F (15-19°C)


Package Includes:

• 1 x 80W Laser Tube
• 1 x User Manual (English)

Warranty:

• No need to worry! We offer a 1-year warranty on all CO2 laser tubes 80W and up.

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
